KDM300M Description

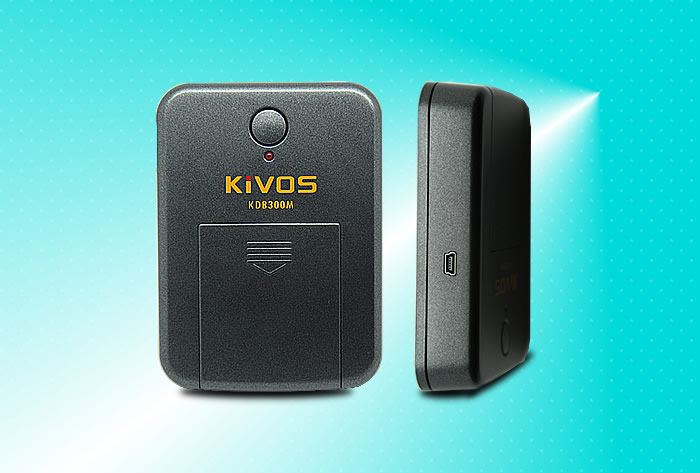

Outdoor Unit:
1. Adopt digital 2.4G ISM Wireless automatic frequency hopping and anti-interference ability;
2. Intercom function, clear voice transmission, synchronous transmission sound and video data;
3. IR night working, automatic call night vision induction;
4. 120° working angle;
5. Lithium battery power supply and rechargeable;
6. Auto hibernation power-saving technology and long stand-by time;
7. DIY peephole;
8. Applying peephole diameter of door: 14~40mm, thickness: 40~100mm.

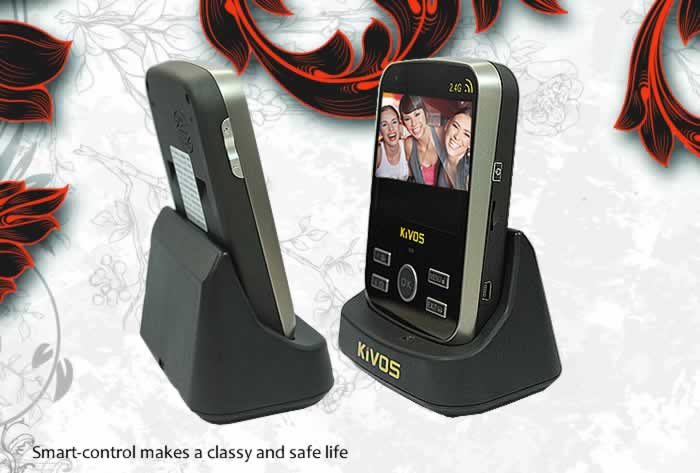

Indoor Portable Unit:
1. 3.5inch TFT digital LCD screen;
2. Transmission Width 25fps/S, clear image transmission no delay;
3. Indoor unit movable screen receptor;
4. Call volume size adjustment;
5. Auto and manual taking photo function, can save 100pcs photo and Automatic cycle;
6. 16 optional rings;
7. Best equipped: 1 outdoor unit can be equipped with 1 to 3 indoor units;
8. Communication distance in open space around 150 meters;
9. RechargeableLithium battery power supply;
10. Certification: FCC/CE/ RoHS.
Parameter:
Outdoor Unit
|
Power |
Lithium battery BP-6M(1100mAh） |
Consumption |
200mA |
Dimension |
82X50X20mm |
Weight |
200g |
Working Environment Temperature |
-10℃~+50℃ |
Water-proof Grade |
IP32 |
Installation |
Wall Exposed |
Case Material |
Flame retardant ABS |
Camera Resolution |
300,000pixels |
Wide Angle |
120° |
Night Version Pattern |
4 IR lamps |
Working Time |
4hours continuously |
Standby Time |
1200Hours |
Charge Time |
3Hours |
External power supply |
DC5V 1A |
|
Indoor Unit
|
Power |
Lithium battery BP-6M (1100mAh） |
Consumption |
200mA |
Dimension |
126X84X20mm |
Weight |
110g |
Working Environment Temperature |
-0℃~+40℃ |
Placement |
Table style (handheld) |
LCD Screen Receptor |
3.5inch TFT |
Wireless Communication |
2.4GHz |
Working Time |
4hours continuously |
Video Format |
JPEG |
Standby Time |
500Hours |
Charging Time |
3Hours |
External Power |
DC5V 1A |
Application Distance |
About 300m in open space 150M |
|
